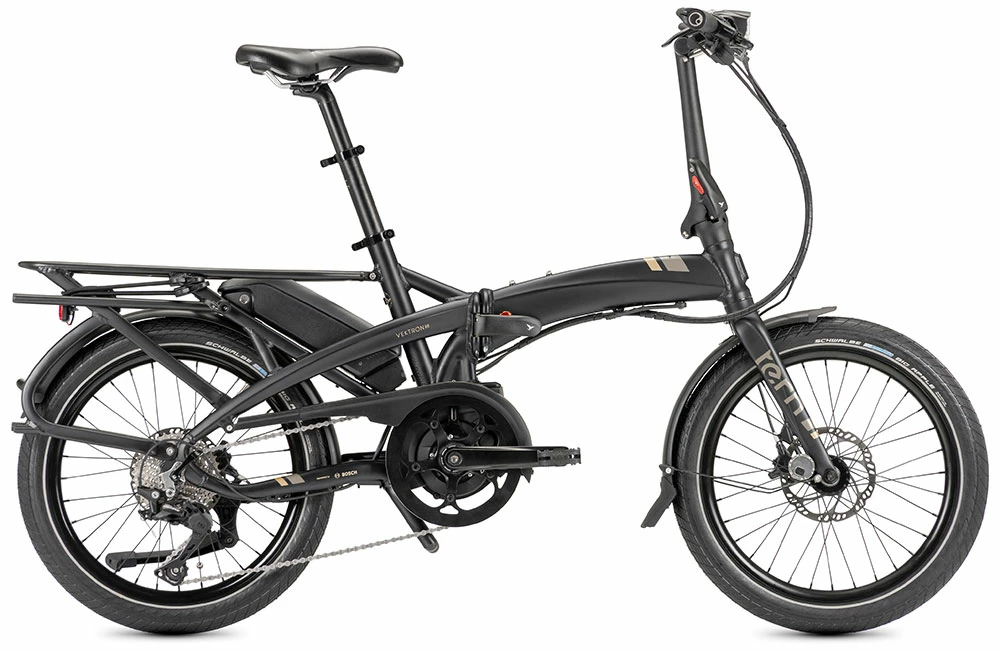

Tern Vektron S10

The Tern Vektron S10 comes equipped with powerful Bosch engine, SHIMANO Deore 10-speed drivetrain and MAGURA MT-4 disc brakes. Paired with a heavy-duty ATLAS Rack, good lighting and full fenders, the e-folding bike is up for all occasions.

The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. With an electric drivetrain, 20” wheel bikes are just as fast as 700c. That means riders can enjoy all the benefits of small wheels—compact size, low center of gravity, quick acceleration, maneuverable handling, and plenty of cargo space—with big wheel speed.

---

Features – Tern Vektron S10

• Bosch Performance Line Motor – up to 300% assistance and 65 Nm of torque
• 10-speed Shimano Deore drivetrain for versatility
• Hydraulic Magura MT-4 disc brakes for all-weather stopping power
• Tern Valo light for 24 hour visibility
• Bosch 500 Wh battery for a long range
• Andros stem, to fit riders from approx. 147 – 195 cm in seconds
• Solid Atlas rear carrier for hauling your gear
• Folding Size: 41 x 86 x 68 cm
• Max load weight: 105 kg
• Suggested rider height: 147 – 195 cm

---

Technologies

OCL+™ Frame Joint – ROBUST FOLDING TECHNOLOGY
A heavy-duty update to our iconic OCL frame hinge, the OCL+ is built to exceed ISO 4210 and EN 15194 testing requirements. Leveraging the hinge design of the long-tail Tern Cargo Node, the OCL+ features a single-shaft design, advanced welding techniques, and robust gussets, so it stays stiff and strong during even the fastest commutes.

• Stronger by Design
  Making the hinge taller and moving the pivoting surfaces outward from the center axis more than doubles overall strength and stiffness. It’s a difference you’ll feel from your very first ride.
• Smooth Operation
  The patented design puts four igus® bearings between the aluminum and stainless steel moving parts so the folding action is always smooth and friction-free.
• Interlocking Joint
  The front and rear joint surfaces lock together to eliminate torsional movement.
• Easy to Use
  Large rounded surfaces on the lever and joint bodies are easy on your hands and allow good leverage for easy operation.
• Doubly Safe
  Close the lever and the AutoLok automatically locks in place, for extra, easy security.
• Floating Point Technology
  Patented technology allows the lever to fold flat and brace against the joint for protection in transit.
• Serviceable
  Good things are built to last and that’s why the OCL Joint is designed to be dealer serviceable. We keep every part in stock and if your bearings ever wear out, your dealer can replace them in a few minutes.
• Precision-Machined
  A machining tolerance of only 50 microns ensures a tight fit and eliminates looseness and rattling.
• Stainless Steel Hardware
  Cold-worked stainless delivers the durability and reliability needed for daily riding in all weather conditions.

ANDROS™ STEM – ADJUST TO FIT
The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.

MAGURA MT4 HYDRAULIC DISC BRAKES – FULL STOP
Hydraulic disc brakes give you excellent stopping power, working effortlessly even in rain, snow, or mud. All it takes is the gentle pull of just two fingers. With mineral oil-based brake fluid that is gentler on the environment than most hydraulic brake fluids, and Magura’s Easy Bleed Technology, your Vektron is ready for a safer ride.

BOSCH PERFORMANCE DRIVE UNIT – POWER TRIP
Electric bikes make it easy to ride from A to B. Where it gets interesting? When you’re inspired to visit the rest of the alphabet. The Bosch Performance Drive Unit offers a fine-tuned balance between torque and range. It takes the burden out of hauling kids and groceries. With up to 100 km of range with a standard 400 Wh battery, it’s the market leader in ebike technology.

Bosch PowerPack Battery – FEATHER-LIGHT POWERHOUSE
This impressive high-energy, high-power cell carries 500 watt-hours (Wh) of power. The best-in-class design charges fast and lets you ride longer and further between charges. You’ll be impressed by its long lifespan, light weight, and ease of charging.

Bosch Purion Control Panel – COMPACT CONTROL CENTER
The on-board computer lets you switch between different riding modes, and feeds you handy information like speed, battery level, and distance. It optimizes shifting actions and constantly updates you on the remaining range, just like a typical German car. Best of all, it’s now more compact and robust than ever.

ATLAS RACK – AN ULTRA-ROBUST RACK WITH GSDNA
With structural cues from the heavy-duty Tern GSD, the new Atlas Rack has been massively strengthened and increased in size, with a load capacity of 27 kg (59 lb). This reduces flex for more secure handling when the bike is loaded. Riding with your little one? Add a Thule Yepp Maxi or Nexxt Maxi child seat—no adapters needed. The Atlas Rack is also KLICKfix-compatible, and can hold panniers of different sizes.

---

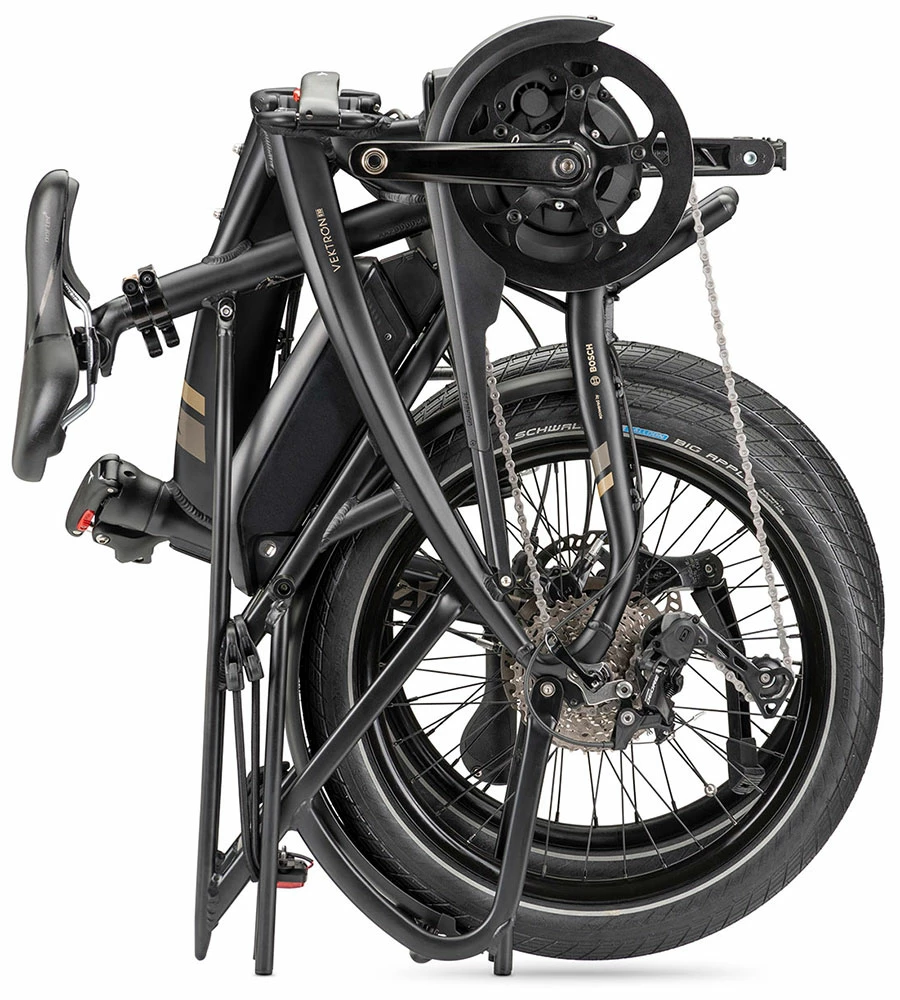

How to Fold and Roll the Vektron Electric Folding Bike

How to Unfold the Vektron Electric Folding Bike after Rolling

Tern Vektron S10 | Owner Briefing
